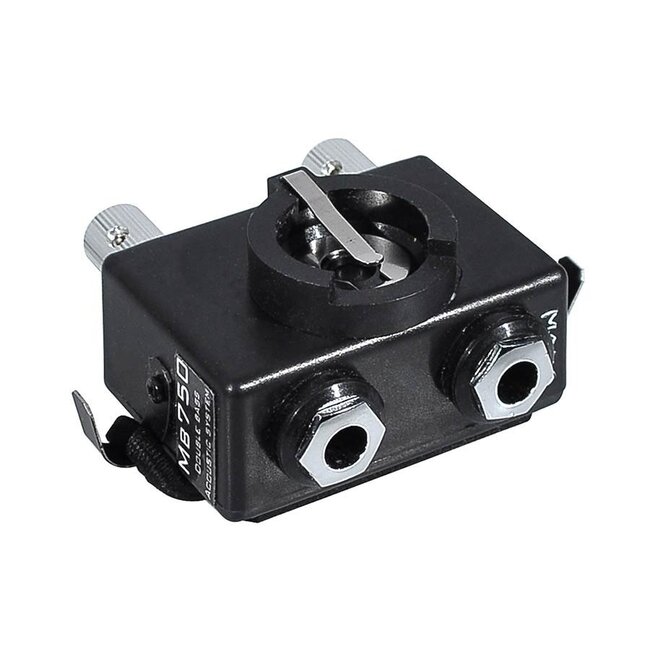

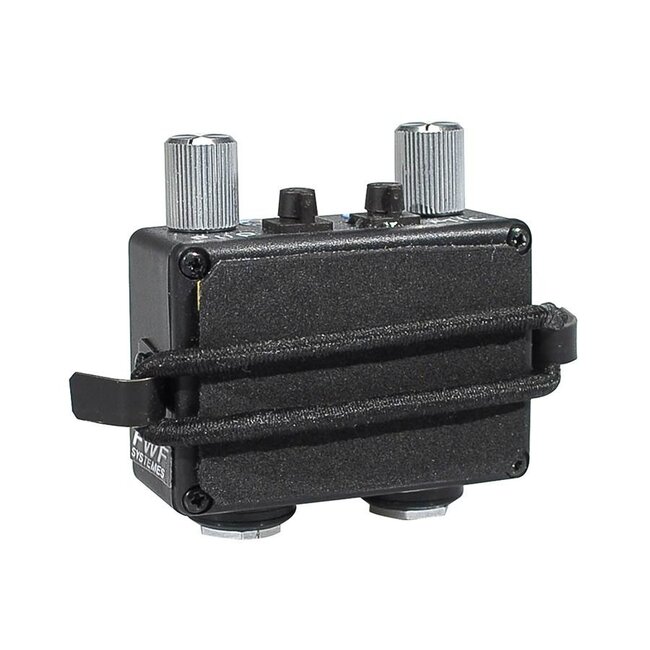

The MB750 is a high quality active amplification system with a HI -FI electret directional microphone and a quadruple piezo pickup connected to a "phantom" power box, which also allows you to adjust the low pass filter, microphone sensitivity and volume.

Technical specifications:

- Power: 12V battery

- Maximum consumption: 2mA

- Impedance: <2K ohms

- Bandwidth: 20Hz-20000Hz

- Signal ratio: >58dB

- Output plug: 2x 6.3mm female jack

- BAT-V23GA battery available

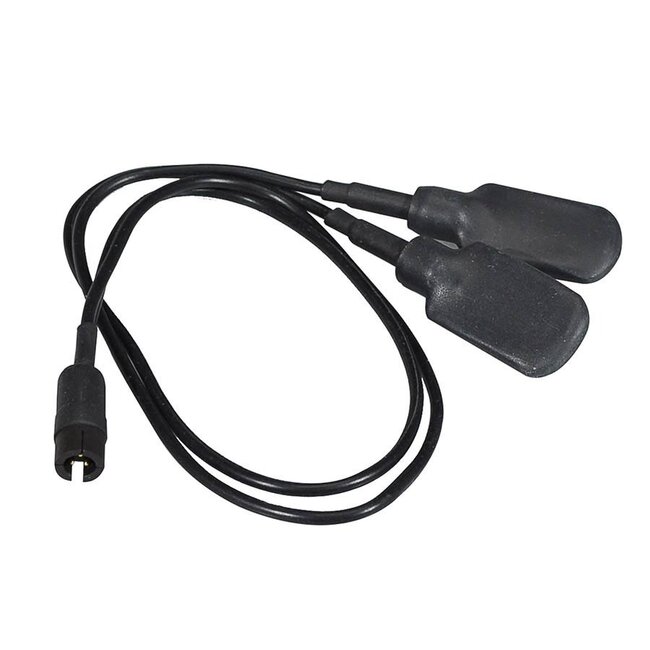

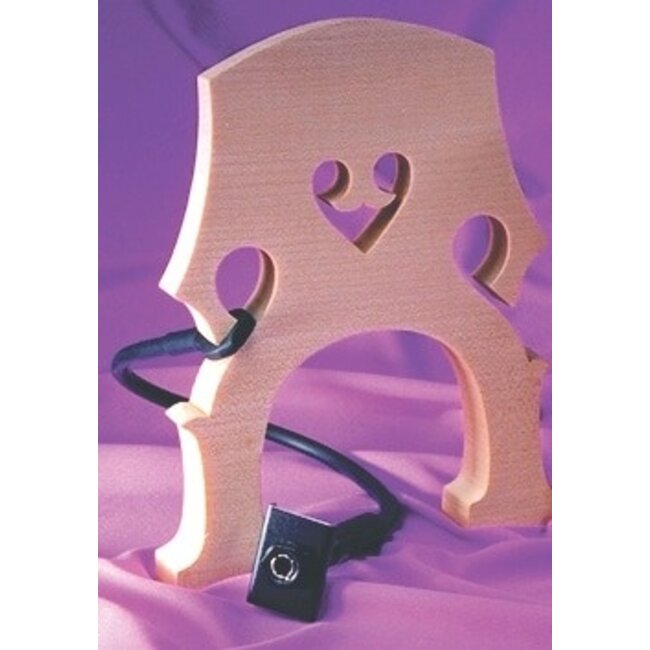

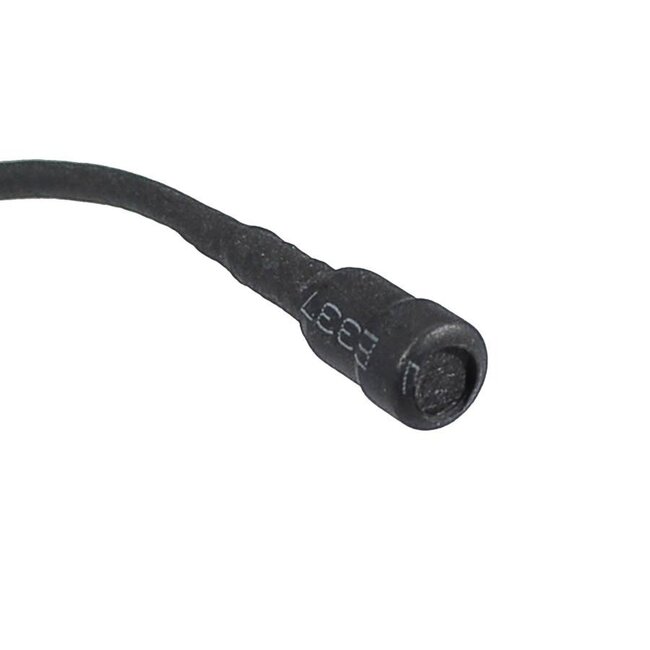

The two sensors of the system are easily mounted between the recesses of the comb (see accompanying photo as a typical example) and the microphone is mounted on the tail piece by means of a supplied clip. The microphone gives a more acoustic and "spacious" sound, while the pickup is more directly aimed and offers a more detailed sound. The advantage of this system is that it can be mixed well to achieve the optimal sound! The entire system is very easy to remove.
